Air-cooled screw chiller

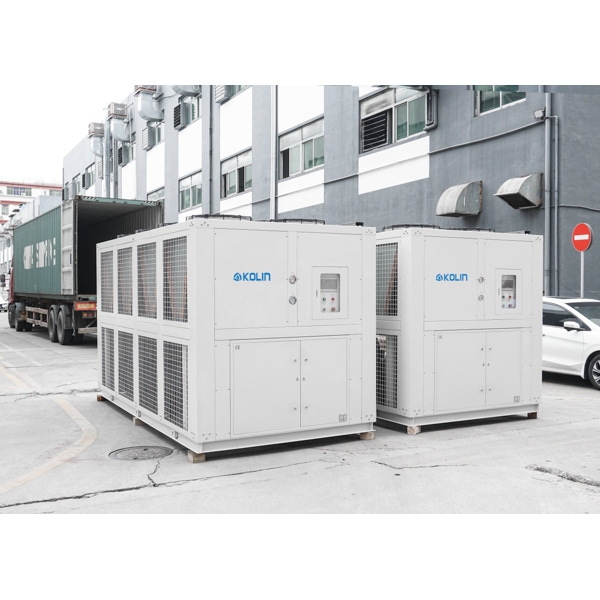

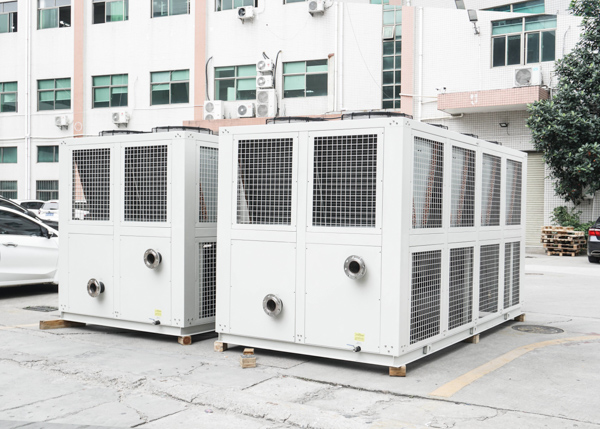

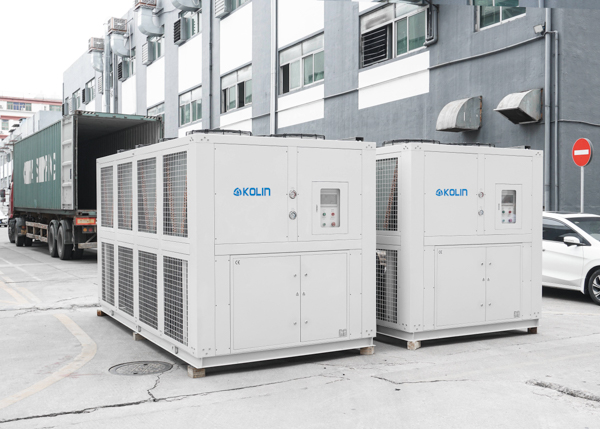

KAS-200D Air cooled screw chiller

Technical Parameters


1. Model:KAS-200D

2. Refrigerating Capacity: 176.9KW*2=

3. Power Supply: 3PH/380V/50HZ

4. Total input power:94KW*2

5. Maximum Operating Power:216KW*2

6. Compressor Power:87KW *2

7. Capacity adjustment: 0-25-50-75-100%

8. Refrigerant Charge: 70KG*2

9.Heat elimination fan：8units*2, Blowing rate: 95000m³/h *2

10.Chilled water flowrate: 48 m3/h*2

11.Overall equipment dimension: 4000*1950*2190mm*2

12.Equipment Weight:2850KG*2

    Equipment components


    1、Compressor：Original Taiwan Hanbell compressor

    2、Liquid crystal display：Siemens PLC  + touch screen control

    3、Electric element：Schneider brand AC breaker,contactor and phase sequence relay

    4、Filter:Emerson filter 20 micron

    5、Pressure controller: Shanghai Junle

    6、Condensor：High efficiency aluminum finned copper tube+Low noise outer rotor fan

    7、Evaporator：High efficiency shell and tube type

    8、High/Low pressure gauge: LAEADA brand gauge

    9. Piping:SS304 pipeline

    10、Temperature control range：5-35℃

    11、Chilled water inlet and outlet：DN100/4"

    12、Cooling ambient temperature≤45℃

    13、Safety Protection：(Phase sequence, phase-missing ,compressor overheat ,overload, high and low pressure ,liquid level, over temperature ,anti-freezing)
