Air-cooled industrial chiller

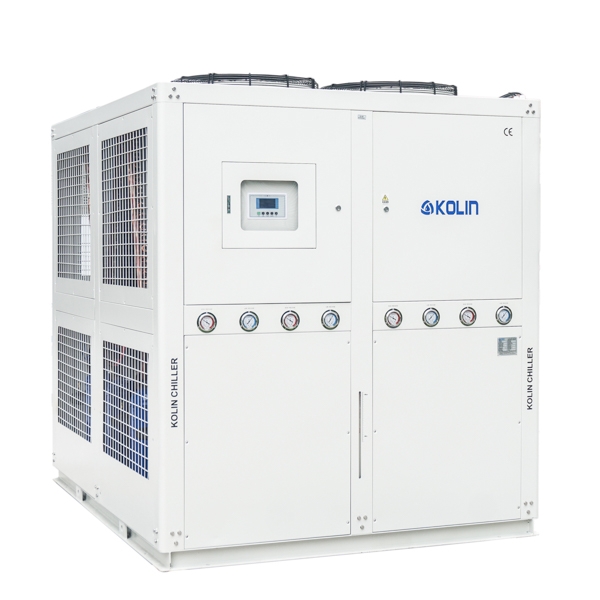

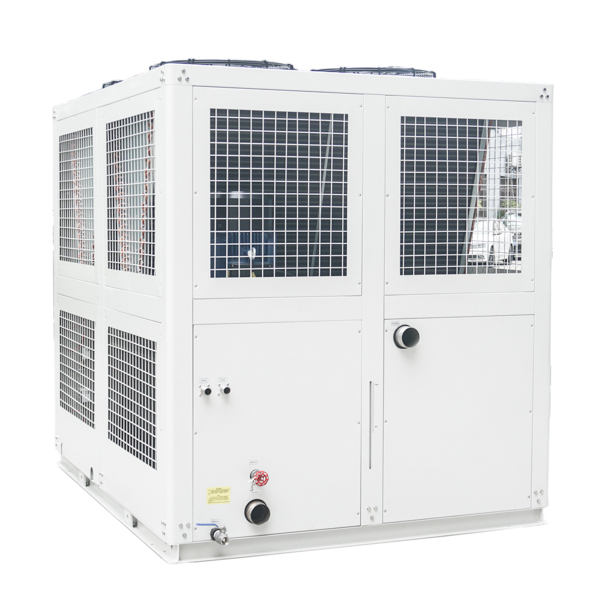

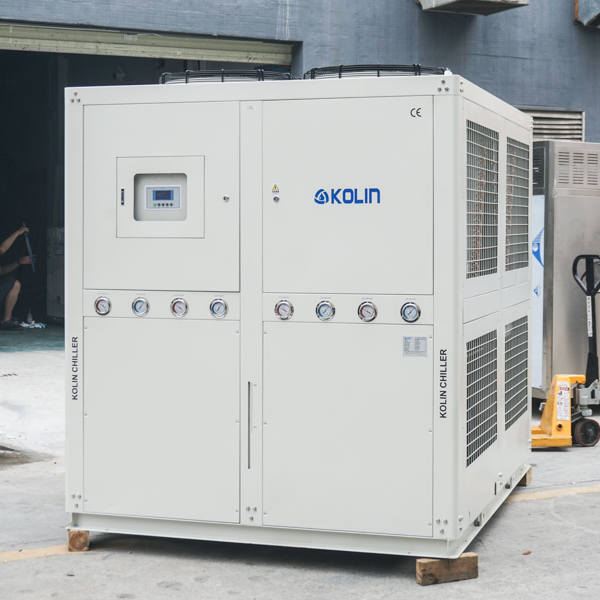

KA-40F Air cooled industrial water chiller

Technical parameters

1、Model:KA-40f

2、Refrigerating capacity:109.6KW

3、Power supply:3PH/380V/50HZ

4、Total input power:39KW

5、Compressor power:8*4KW

6、Refrigerant charge:30KG

7、Pump power:3.7KW
8、Heat elimination fan:2 units,blast capacity:40000m3/h
9、Chilled water volume:18.9m3/h

10、Equipment dimension(mm):2100*1660*2050

11、Equipment weight:1250KG

    Equipment components

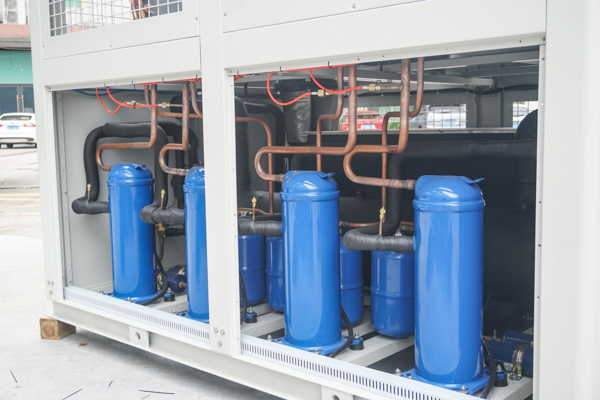

    1、Compressor:Panasonic compressor

    2、Liquid crystal display:Punp control system

    3、electric element:Schneider brand AC breaker,contactor and phase sequence relay

    4、Filter:Emerson filter 20 micron

    5、Pressure controller: Shanghai Junle

    6、Condensor:Aluminum Tube-fin condenser with high efficiency copper tubing

    7、Evaporator:SS304 water tank & coiled tube type

    8、Water tank:SS304 ,580L

    9、High/Low pressure gauge: LAEADA brand gauge

    10、Water pump:SS304,hydraulic pressure:0.2 Mpa

    11、Piping:SS304

    12、Temperature range:5-35℃

    13、Chilled water inlet and outlet:DN80/3"

    14、Cooling ambient temperature≤45℃

    15、Safety Protection:(Phase sequence, phase-missing ,compressor overheat ,overload, high and low pressure ,liquid level, over temperature ,anti-freezing)
